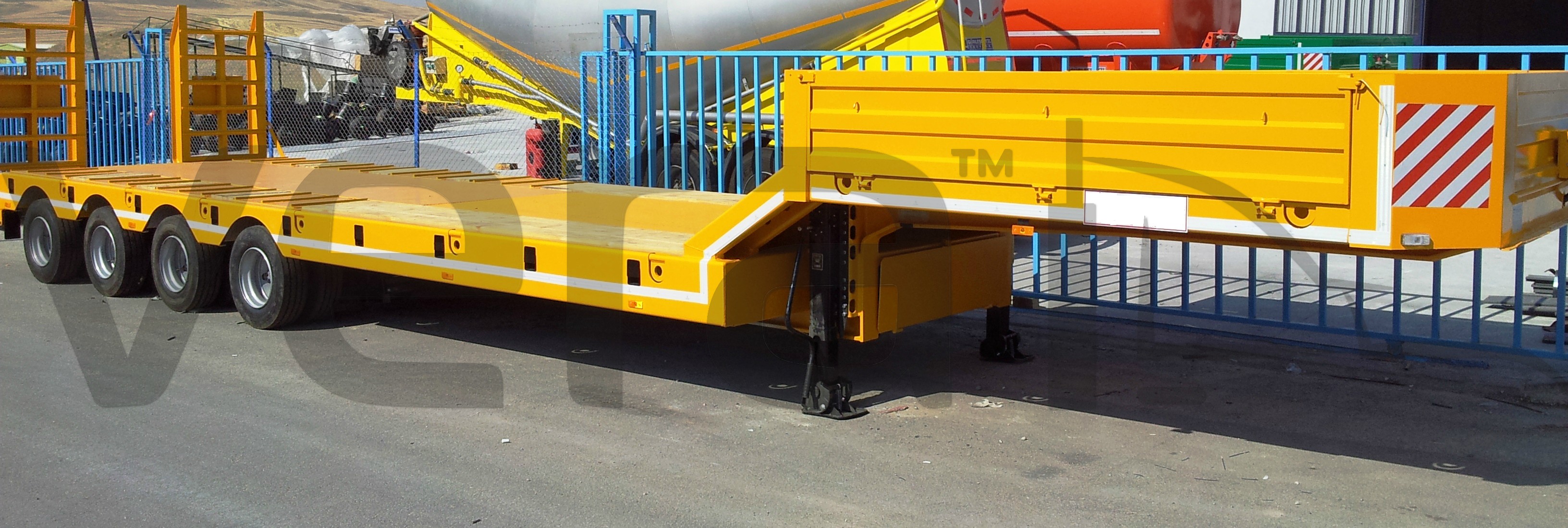

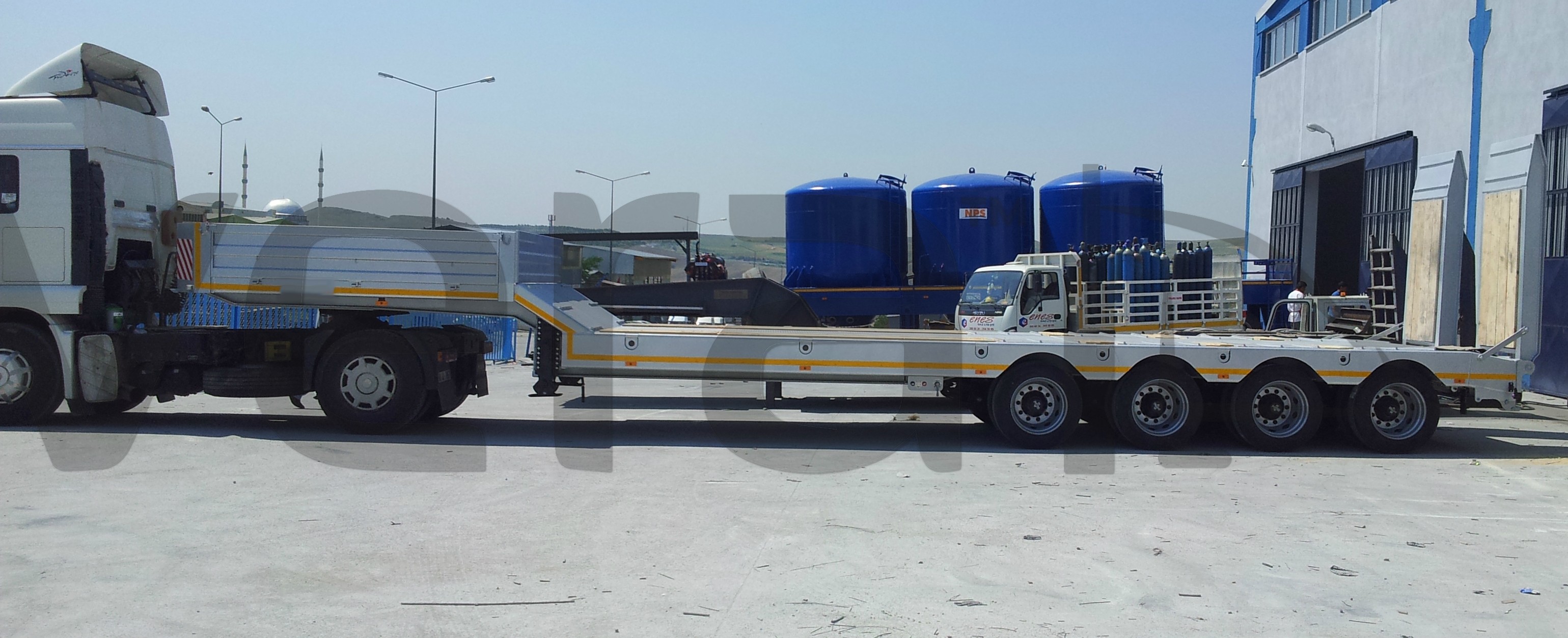

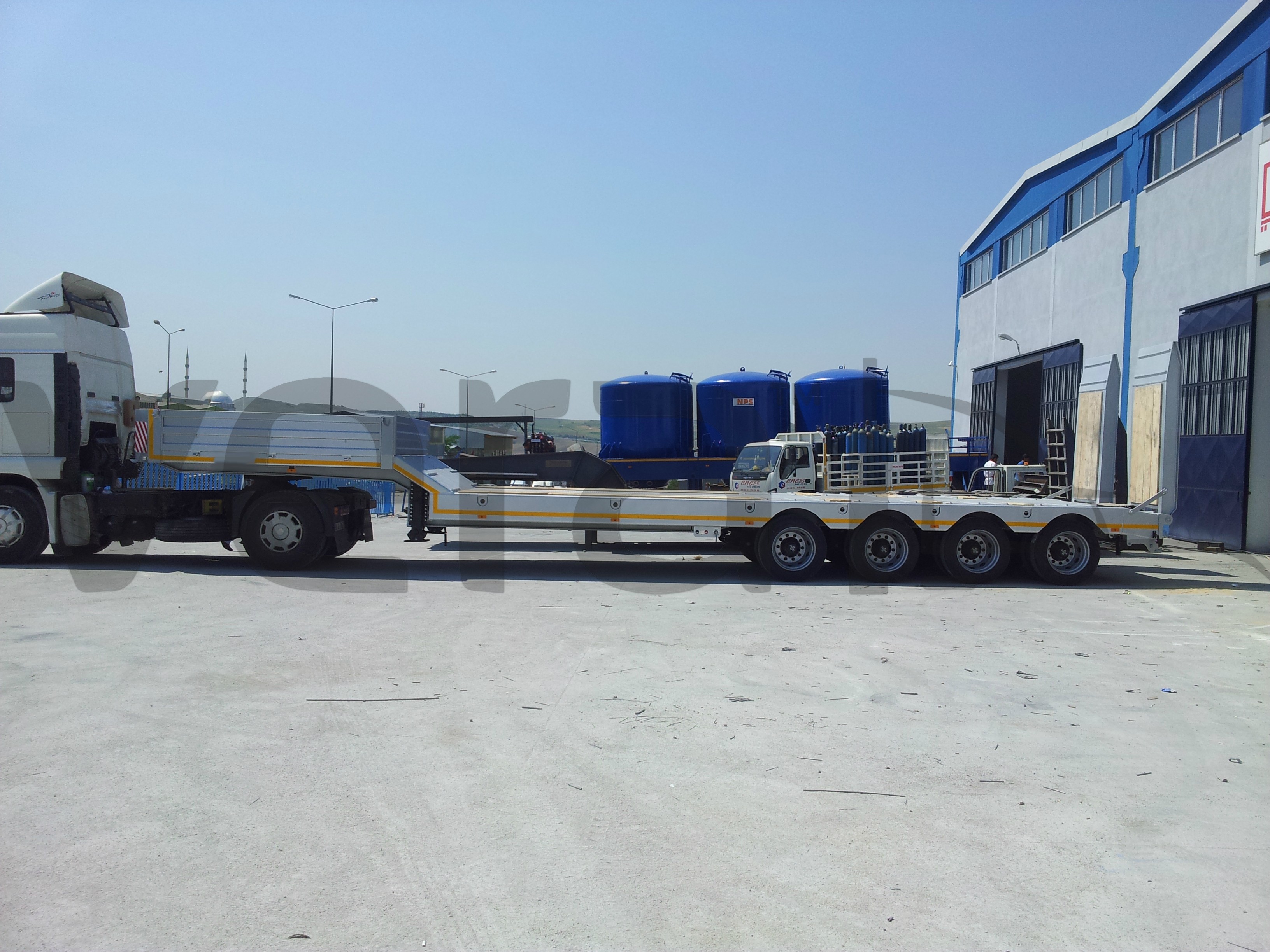

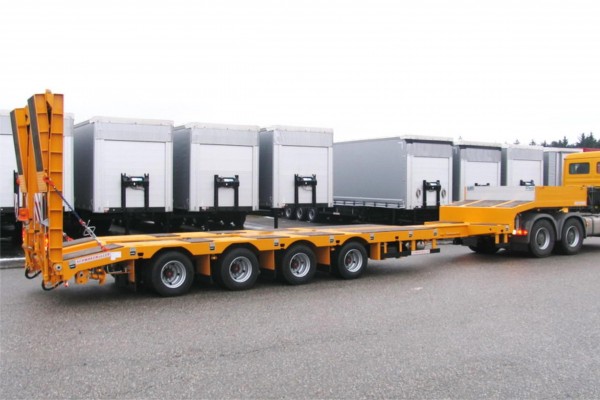

4 axle lowbed is generally used for carrying 60-120 Tons capacity loads. These 4 axle lowbedcan be both platform and pool type and we have a flexibility on the specifications. We have different options to solve your load problem. With our technical team we can manufacture high quality 4 axle lowbed.
– LOWBED 4 AXLE
rack is welded by submerged welding machine from 20 mm x 150 mm (ST 52.3 A Quality) bottom and top flat steel and 10 mm ST 52.3 hub plate. It has “I” section and also includes 4 pieces
– Rack is supported with 160 NPI axle beams that crosses rack
AXLE
– Is manufactured in accordance with the European standards. It has a carrying capacity of 16 tons and donated Brake lining and bearing mark TIMKEN and FAG Axles have 10 wheel brace .Axle is certificated by ISO 9001 and 100.000 km guaranty.
– 4 axles with the capacity 12-14-16 tons, are used
– With Air suspension, Stowage spring, Bogie suspension
– There are brake shoes and heavy brake levers suitable for TSE norms
SUSPENSION SYSTEM
– Parabolic double deck Z springs, Stowage springs, bogie suspension
FRONT AXLE LIFTING
– Remote operated elevating system for front axle shaft in cabin
TIRES AND RIMS
16+1 tires are used with different dimensions. Dimension that we use are; 235/70 R 17.5
245/70 R 17.5
295/60 R 22.5
12 R 22.5
315/80 R 22.5
ELECTRICAL SYSTEM
– It is suitable for SAE standards and TUV regulations
– Electricity is provided by 7 pin plug from vehicle
– There are necessary traffic advisory and stoplights on both sides
– There are backlights, brake lights, plate lamps, trailer reflectors and orange warning lights on the sides
BRAKE SYSTEM
– 71/320/ewgff brake system according to EC standards.
– Automatic slacks, 2 spring brake chambers and 2 service brake chambers.
2S/2M ABS
– Air leaks in trailer are blocked by Sweden patented Ruffels union system
KING PIN
– Steel king-pin which is 2” according to DIN 74080 standards and 3½” 42 CRMO4 according to DIN 74083 standards are used
PARKING LEGS
– On the front: 24 tons mechanical trailer legs
– On the behind: Manuel support legs
LOADING RAMP
– Manufactured with Air-Hydraulic piston from NPU with 160
FLOOR
– Sides; diamond embossed plate and solid floor on tires
PAINT / COLOR
– Rack and superstructure are painted in paint drying oven by Washing + Sanding + 2+1 coat Acrylic Paint
– It will be specified according to customer request
STANDARD ACCESSORIES
– 2 x 9 expanding brackets(300+300 mm)
– 2 x 9 Load binding ring
– 1 x tool closet(under suspension beam)
– 2 x Bike safety bar
– 1 x Tire wedge and holder
– 1 x Plastic water tank with the capacity of 60 lt.
OPTIONAL SPECIFICATIONS
– Low bed conveying area, pooled type
– EBS brake system
– European axle shaft group and all kind of equipment’s
– Aluminum rims
– Double spare tire conveyor
– Fire extinguisher closet and fire extinguisher tube
– Tire mark according to request
– RAL color codes according to request
